XL Power Meter Connector Adapter Series

For Kingfisher XL optical power meters, and legacy / other power meters

  • For XL & legacy optical power meters.
  • For both PC and APC polish connectors.
  • Fits other brands of power meter with 7/8” 28 TPI thread.
  • Durable metal design.

More interchangeable connector styles

OPT226A

LC / XL Optical Power Meter Adapter OPT226A

LC with tough metal body. For duplex LC use OPT224.

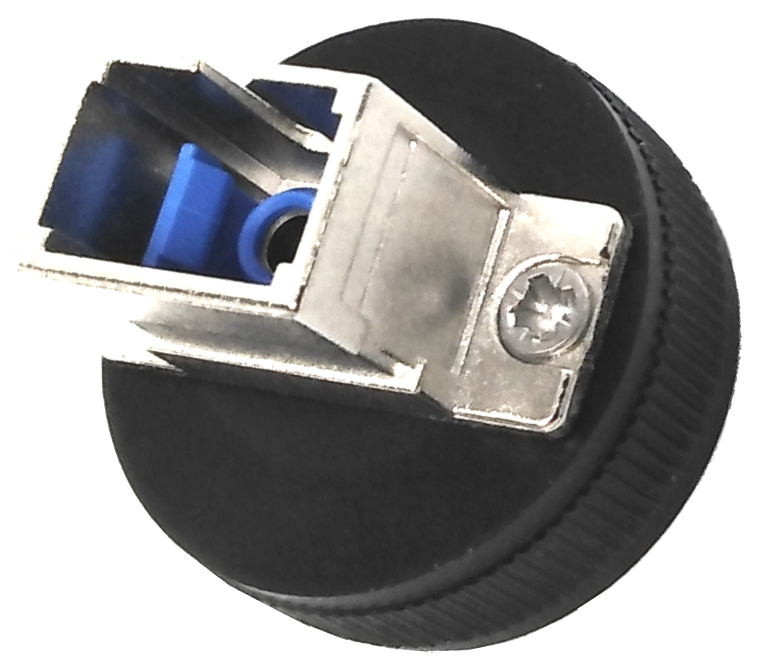

OPT201

SC / XL Optical Power Meter Adapter, OPT201

SC with tough metal body. For duplex SC use OPT225.

OPT204

FC / XL Optical Power Meter Adapter, OPT204

FC with tough metal body. For duplex FC use OPT225.

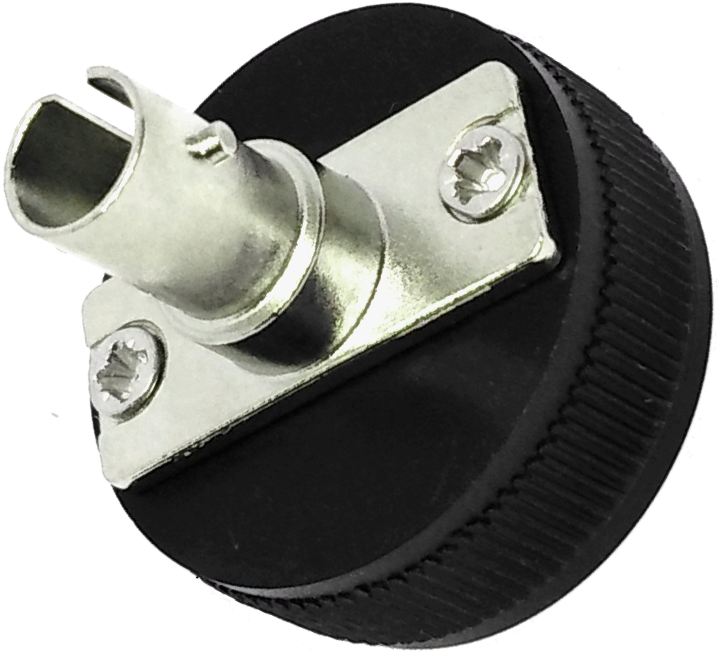

OPT202

ST / XL Optical Power Meter Adapter OPT202

ST with tough metal body. For duplex ST use OPT225.

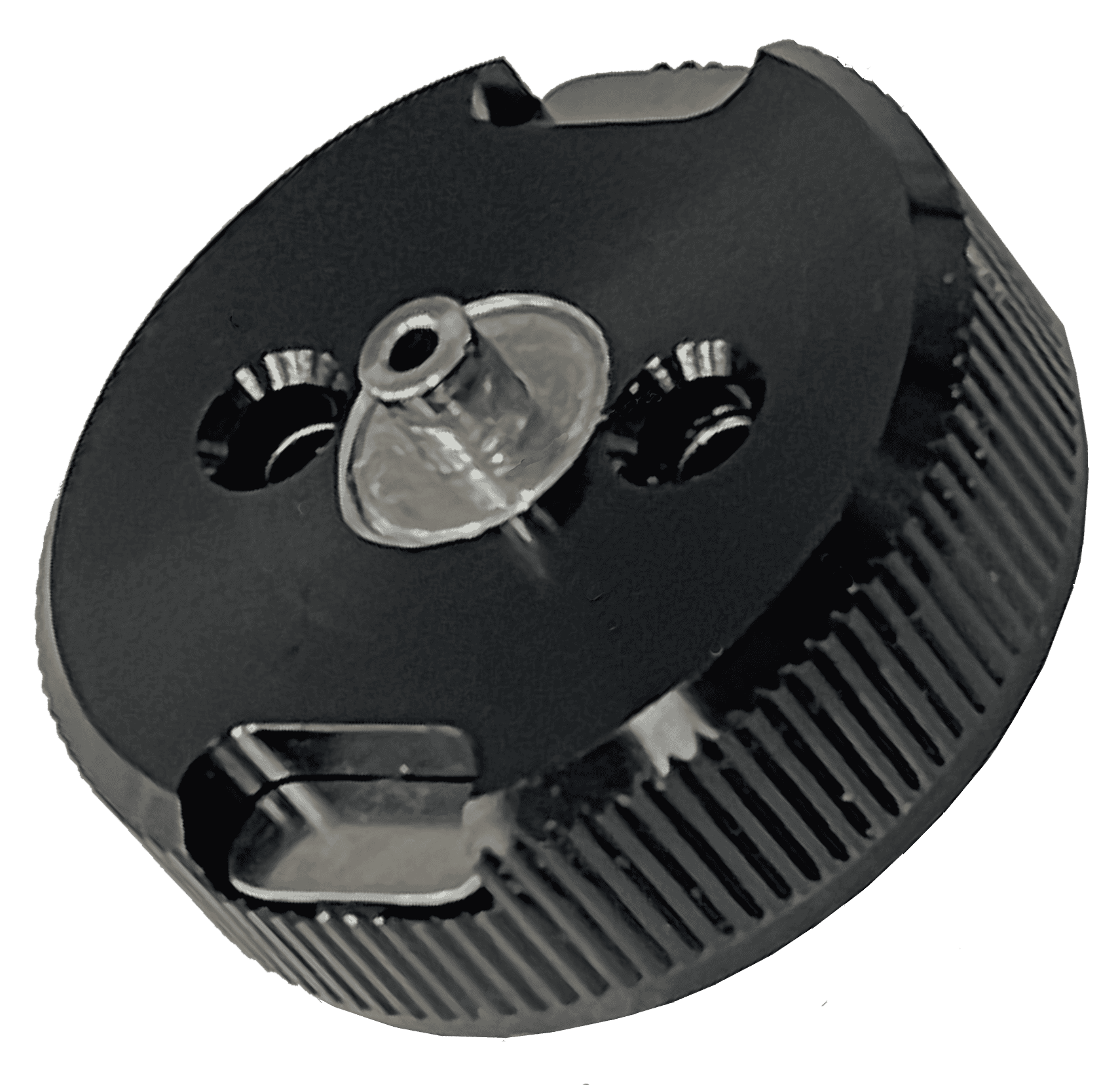

OPT224

1.25 mm Universal / XL Optical Power Meter Adapter OPT224

1.25 mm Universal with tough metal body. For simplex / duplex connectors.

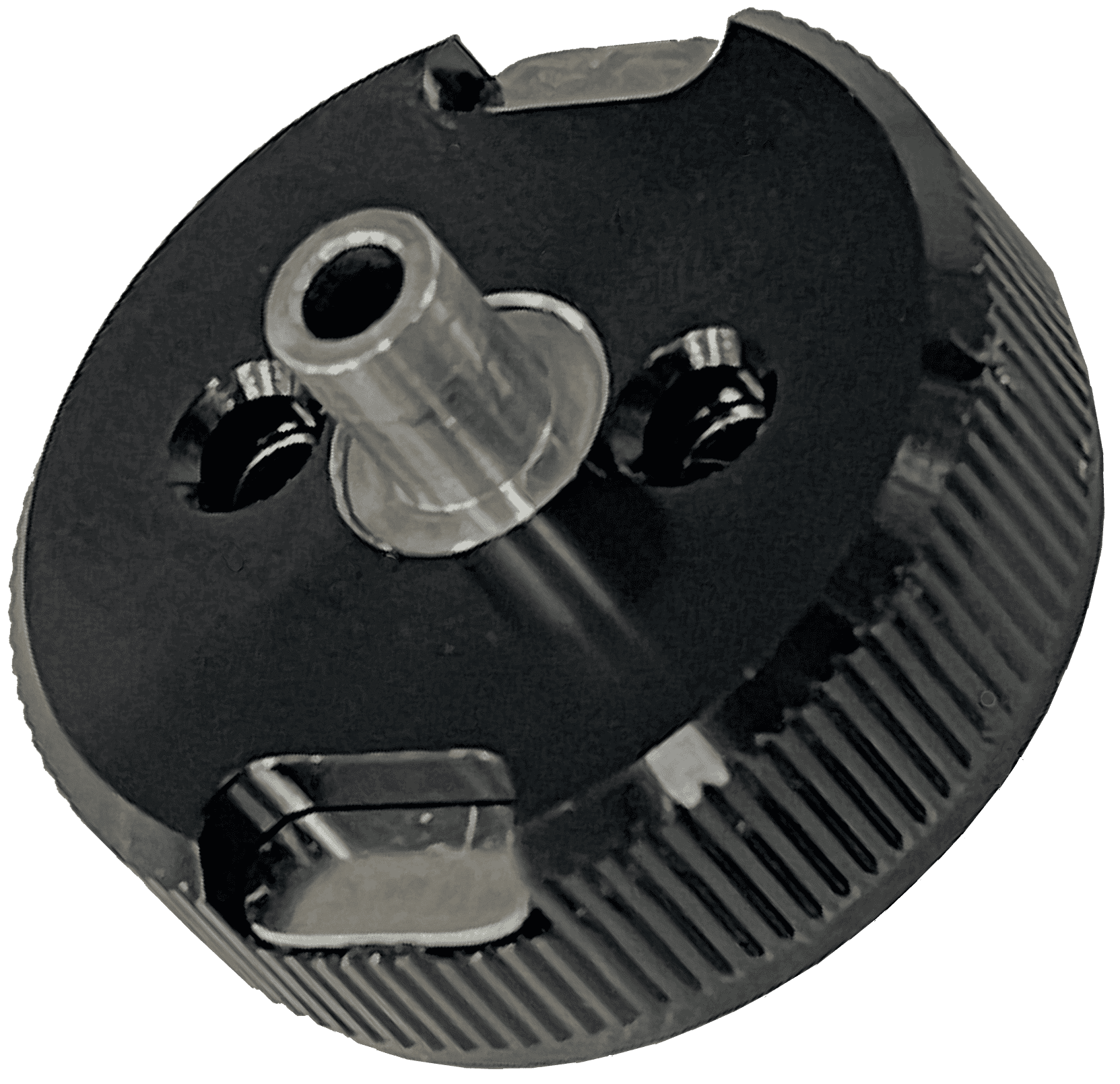

OPT225

2.5 mm Universal / XL Optical Power Meter Adapter OPT225

2.5 mm Universal with tough metal body. For simplex / duplex connectors.

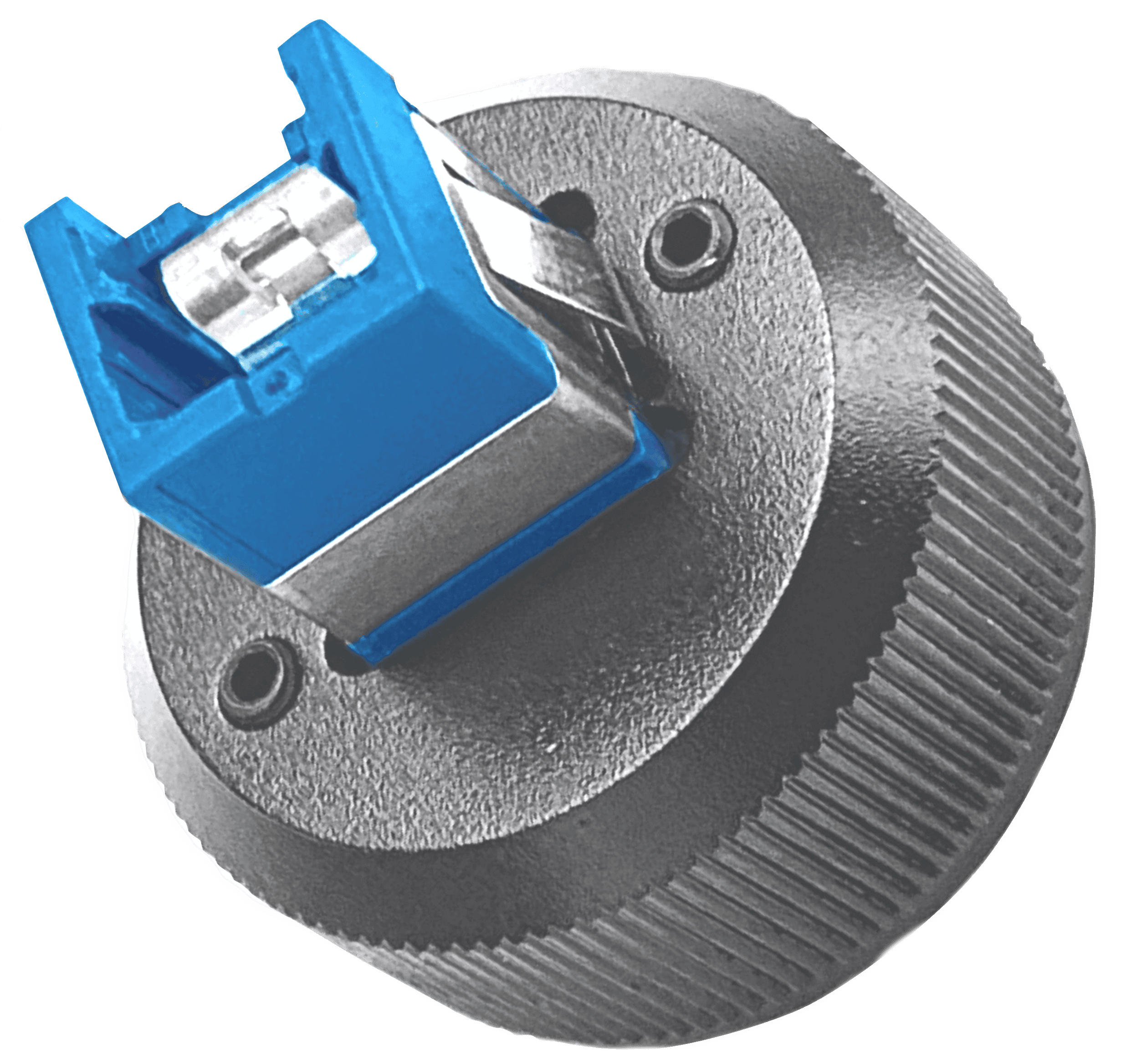

OPT200

CS / XL Optical Power Meter Adapter OPT200

CS duplex adapter. For optical power meters with XL-Ge7 detector.

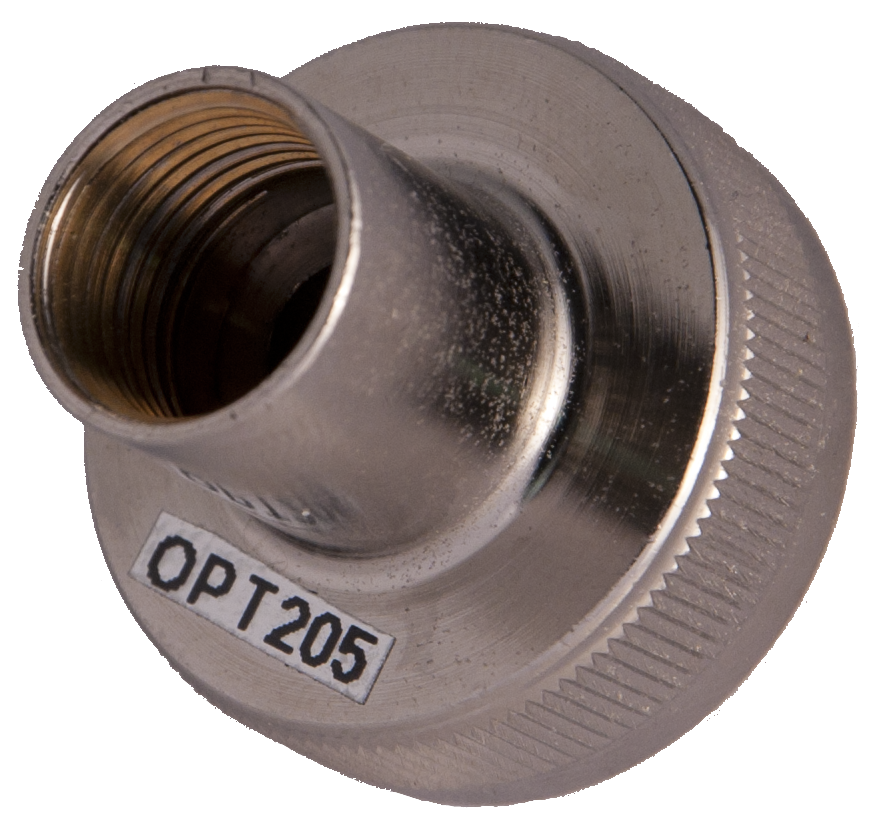

OPT205

Biconic / XL Optical Power Meter Adapter OPT205

Biconic with tough metal body.

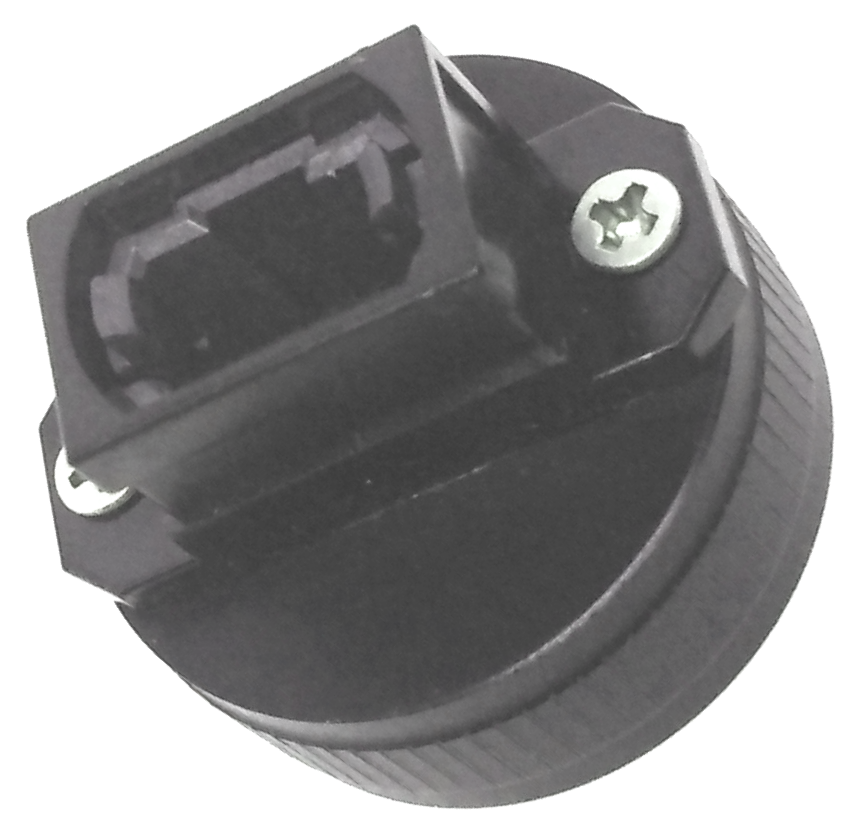

OPT227

MPO / XL Optical Power Meter Adapter OPT227

MTP™ / MPO 12 x n with central key. For any XL series power meter. For MM & SM fiber.

OPT228

MPO 16-32 / XL Optical Power Meter Adapter OPT228

MTP™ / MPO 16 x n with offset key. For XL-Ge7 power meters only. For MM & SM fiber.

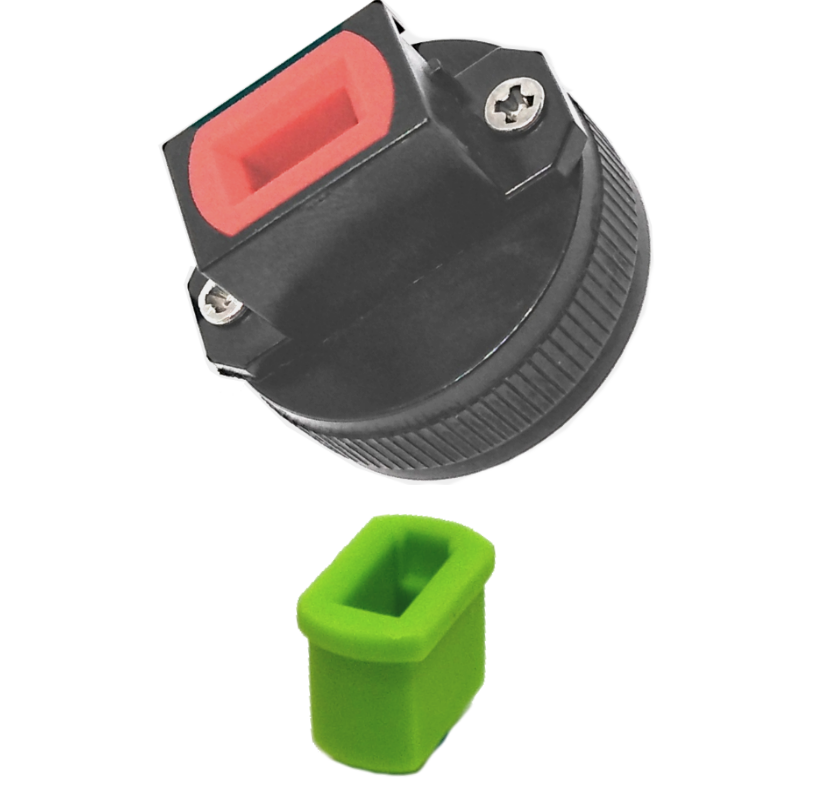

OPT233

MMC or MT Ferrule / XL Optical Power Meter Adapter OPT233

MMC Connector (green insert) or MT Ferrule (red insert). For up to 12-fiber-wide ribbons, use with any XL series power meter. 16-fiber -wide ribbons require an XL-Ge7 series power meter. For both MM & SM fiber.

OPT201-POF

SC POF / XL Optical Power Meter Adapter OPT201-POF

SC for POF with large pin-hole & tough metal body.

OPT203

SMA POF / XL Optical Power Meter Adapter OPT203

SMA for POF with large pin-hole & tough metal body.

OPT202-POF

ST POF / XL Optical Power Meter Adapter OPT202-POF

ST for POF with large pin-hole & tough metal body.

OPT204-POF

FC POF / XL Optical Power Meter Adapter OPT204-POF

FC for POF with large pin-hole & tough metal body.

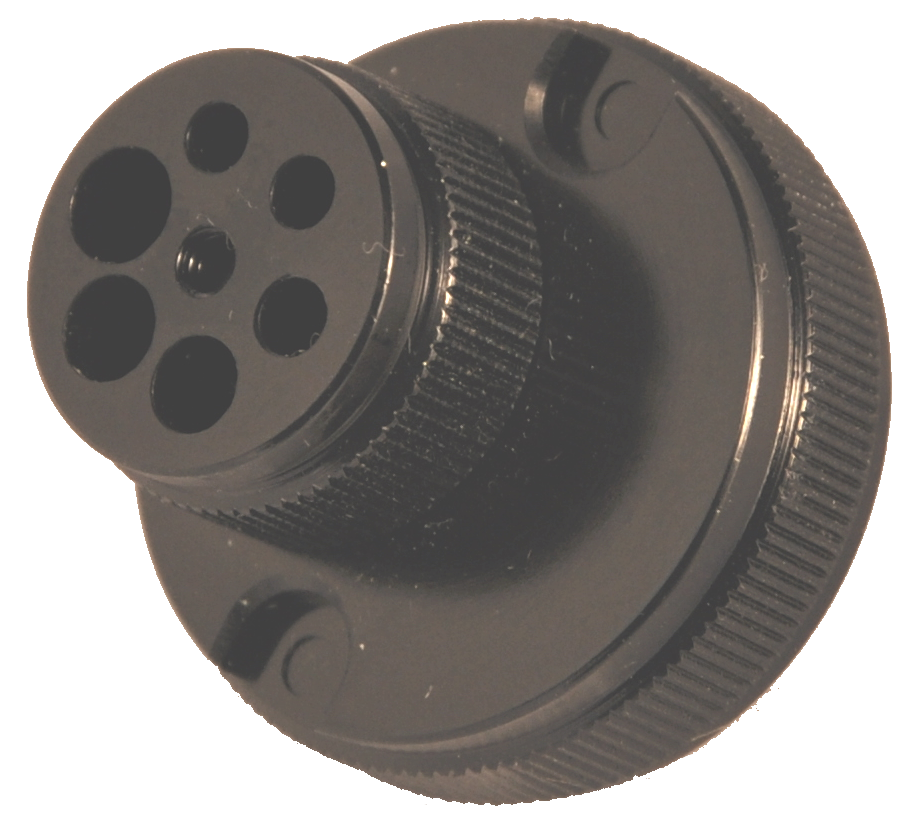

OPT229

POF-Multi Connector / XL Optical Power Meter Adapter OPT229

HFBR simplex / duplex, Mini Toslink, bare POF cable, 2.5mm. A multi-purpose POF adapter for power meters. Turn the turret to the required hole size: 3.85, 3.5, 3.2, 2.55, 2.4, 2.3 mm, x 8.5 mm deep. With tough metal body.

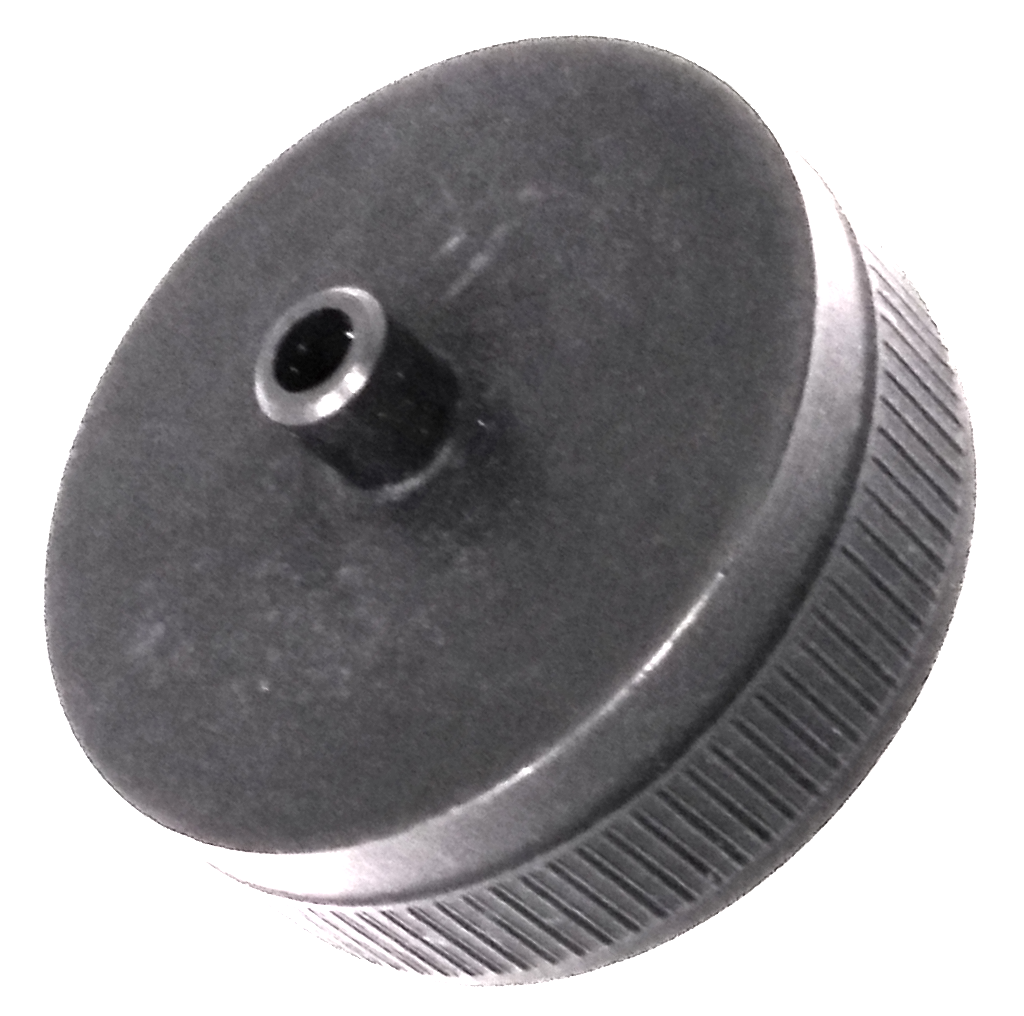

OPT230

Toslink POF / XL Optical Power Meter Adapter OPT230

Toslink / Optilink / SPDIF wth tough metal body.

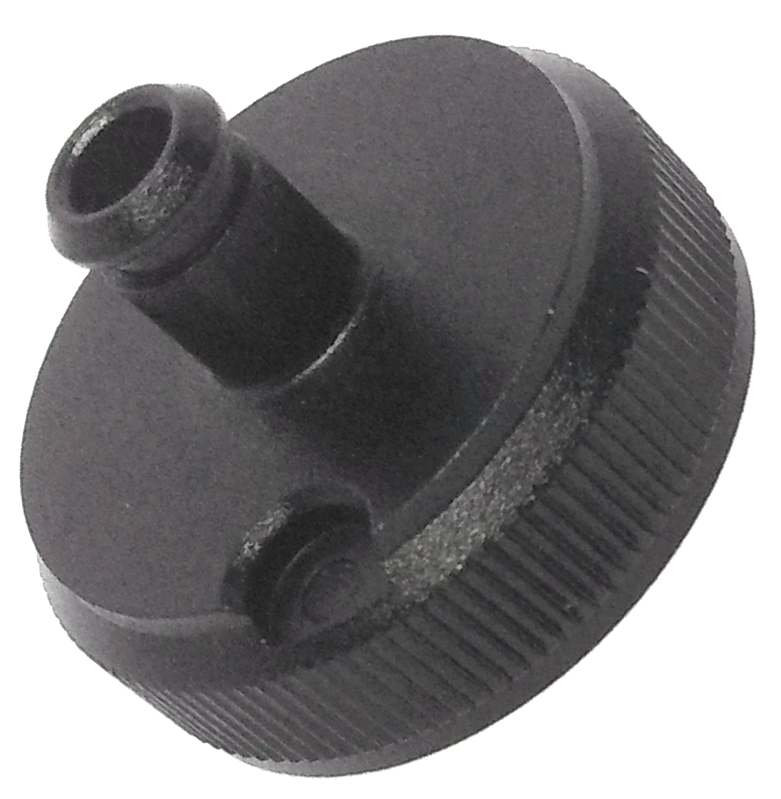

OPT231

HFBR POF / XL Optical Power Meter Adapter OPT231

For simplex / duplex / latching / non-latching POF HFBR, Versatile Link, Redlink connectors. With tough metal body.
