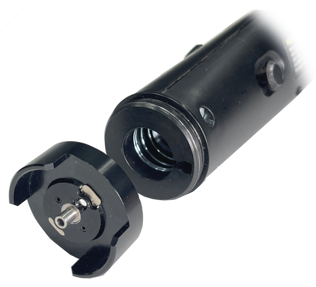

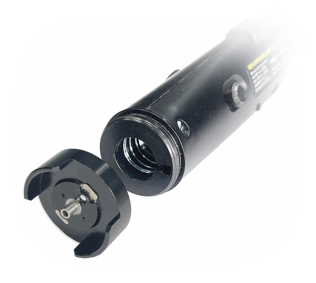

Fibersafe Microscope Connector Adapter Series

For Kingfisher Fibersafe optical microscope

For Kingfisher FiberSafe Microscope.
Accommodate duplex connectors.
Durable metal design.
For regular APC connector use, a connector-specific adapter is preferred.

More interchangeable connector styles

OPT681

2.5 mm Universal / Fibersafe Scope Adapter OPT681

Universal 2.5 mm, PC, simplex / duplex, & terminus for ruggedised connectors. Supplied as a standard microscope accessory.

OPT681A

2.5 mm Universal APC / Fibersafe Scope Adapter OPT681A

Universal 2.5 mm, APC, simplex / duplex connectors & ruggedised connector terminus. For regular use, a connector-specific APC adapter is preferred.

OPT682

1.25 mm Universal / Fibersafe Scope Adapter OPT682

Universal 1.25 mm PC, simplex / duplex connectors, & ruggedised connector terminus.

OPT682A

1.25 mm Universal APC / Fibersafe Scope Adapter OPT682A

Universal 1.25 mm, APC, simplex / duplex connectors & ruggedised connector terminus. For regular use, an APC connector-specific adapter is preferred.

OPT661A

LC-APC / Fibersafe Scope Adapter OPT661A

LC APC

OPT662A

SC-APC / Fibersafe Scope Adapter OPT662A

SC APC

OPT663A

FC-APC / Fibersafe Scope Adapter OPT663A

FC APC

OPT677

MPO 12 24 / Fibersafe Scope Adapter OPT677

MPO 12 x n MM fiber. With traversing knob.

OPT678

MPO 12 24 APC / Fibersafe Scope Adapter OPT678

MPO 12 x n SM fiber. With traversing knob.

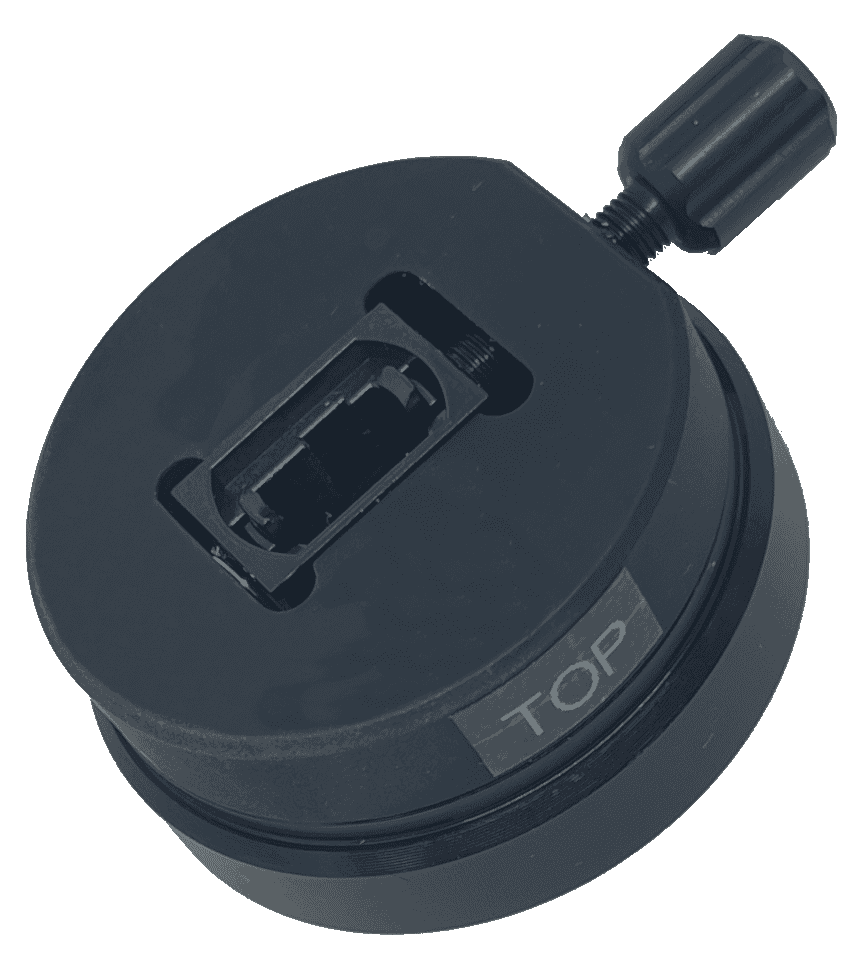

OPT674

MPO 16 32 / Fibersafe Scope Adapter OPT674

MPO 16 x n MM fiber. With traversing knob.

OPT674A

MPO 16 32 APC / Fibersafe Scope Adapter OPT674A

MPO 16 x n SM fiber. With traversing knob

OPT673

MT Ferrule / Fibersafe Scope Adapter OPT673

MT PC ferrule. With traversing knob.

OPT687A

MMC or MT-APC Ferrule / Fibersafe Scope Adapter OPT687A

MT -APC ferrule & MMC. With traversing knob

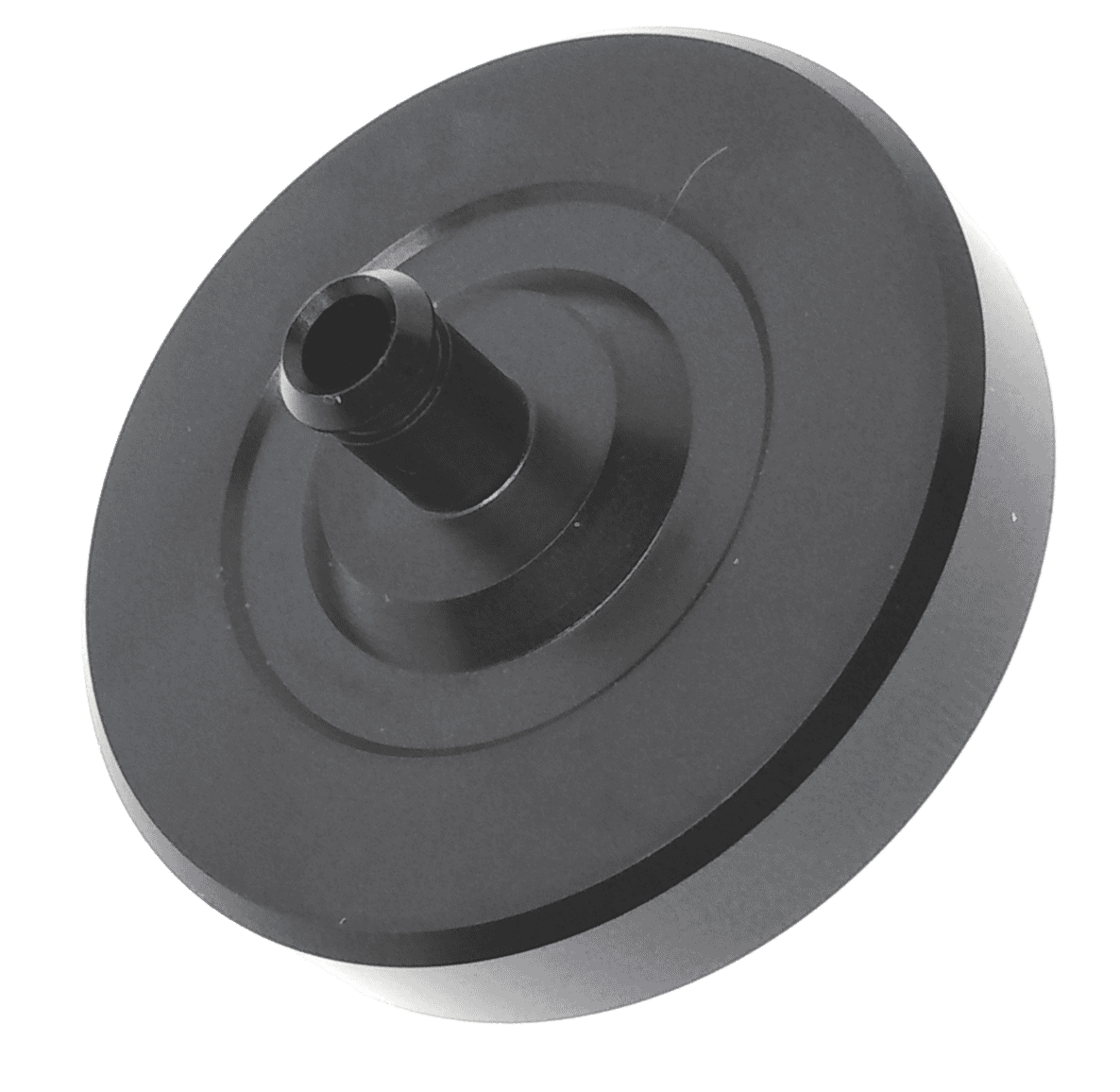

OPT667

HFBR / Fibersafe Scope Adapter OPT667

HFBR simplex / duplex

OPT679

SMA / Fibersafe Scope Adaptor OPT679

SMA (not for x400 scope)

OPT672

1.6 mm Terminus / Fibersafe Scope Adapter OPT672

Universal 1.6 mm for ARINC 801 size 18 terminus, MIL-DTL-38999 size 16 terminus.

OPT672A

1.6 mm Terminus APC / Fibersafe Scope Adapter OPT672A

Universal 1.6 mm APC for ARINC 801 size 18 terminus, MIL-DTL-38999 size 16 terminus

OPT685

2 mm Terminus / Fibersafe Scope Adapter OPT685

Universal 2.0 mm terminus

OPT685A

2 mm Terminus APC / Fibersafe Scope Adapter OPT685A

Universal 2.0 mm APC terminus

OPT670

E2000 / Fibersafe Scope Adapter OPT670

E2000

OPT668A

E2000-APC / Fibersafe Scope Adapter OPT668A

E2000 APC

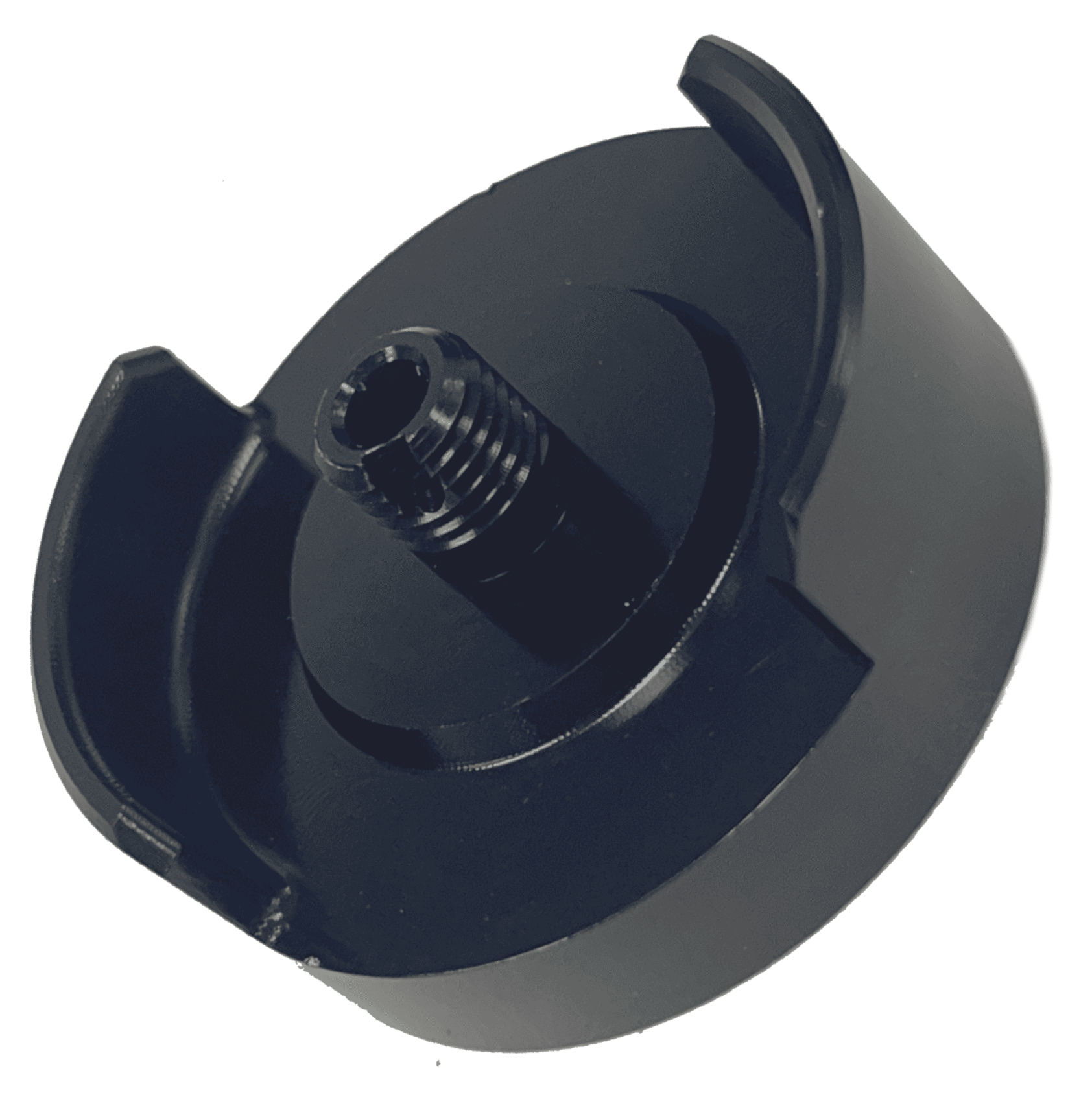

OPT686

D80 / Fibersafe Scope Adapter OPT686

D80

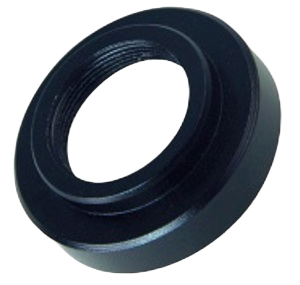

OPT683

FMA Adapter Ring/ Fibersafe Scope Adapter OPT683

Adapter Ring for JDSU FMA series adapters, 7/8" 28 TPI
